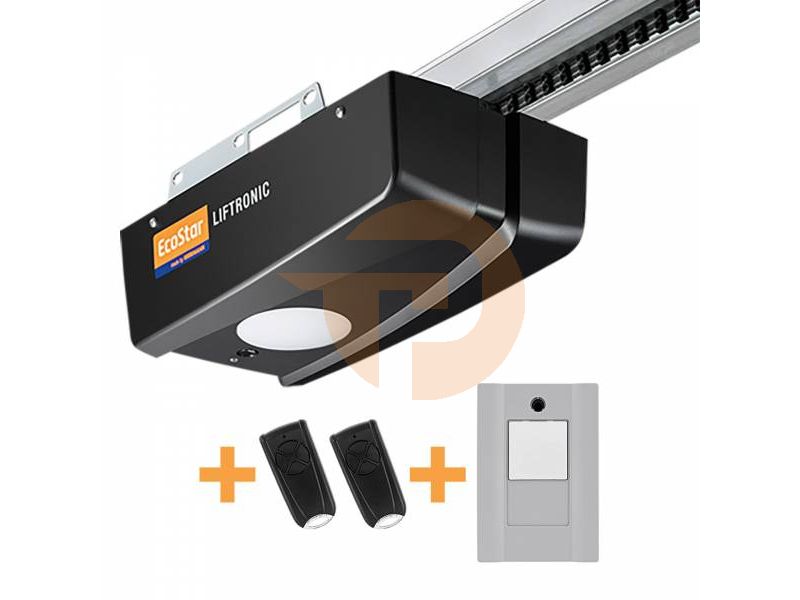

Garagedooropener Hörmann Ecostar Liftronic 700 Serie 2
Dooropener Hörmann Ecostar Liftronic 700 Serie 2
The garage door operator Hörmann Ecostar 700 is easy to install yourself and opens and closes your door smoothly.
The complete garage door operator set from Hörmann offers comfort for up-and-over and sectional garage doors up to 5.5m wide.
The new SERIES 2 drives are secured with the new 433MHz BiSecure radio links which are NOT compatible with the old 433MHz accessories!/p>
Unique features:
4 year manufacturer's warranty
Maximum pulling force 700N
Maximum door height 2375mm (Sectional door) & 2750mm (Up-and-over door)
Doors up to 11.25 ㎡ (For wood 9 ㎡)
Pre-assembled rails
Speed max 160mm/s
<1W power consumption in idle mode
Including 2 handheld transmitters
Including internal push button
Included in the set:
Assembly guide
Motor Liftronic 700 serie 2
Mounting kit for installation
2x Ecostar RSC4 433-BS 4-channel remotes
1x Ecostar PB 3 wall switch
Pre-assembled rail
Extra possibilities:
Connection to ceiling control: Fotocel EL 101 Wired
Connection to ceiling control: Keypad RCT 3b 433-BS
Max door width
5000 mm
Max door width
3000 mm, 3500 mm, 4000 mm, 4500 mm, 5000 mm
Max door height
2250 mm
Max door height
2150 mm, 2250 mm
Class (number of parking spaces)
No index
travel length sled (maximum)
2740 mm
Installation length (minimum)
3420 mm
Inbouwlengte (minimaal)
3080 mm, 3140 mm, 3160 mm, 3164 mm, 3183 mm, 3200 mm, 3220 mm, 3240 mm, 3260 mm, 3295 mm, 3305 mm, 3306 mm, 3350 mm, 3420 mm
Operating temperature
-20 ... +60 °C
IP protection class
IP 20
Max. humidity
93%, non condensing
Operating voltage
230 Vac
Absorbed power at rest
1.0 W
Recorded (max.)
200W
Connection indicator lamp
Yes
Connection traffic light
No
Connection photocell
Yes
Part opening connection
No
Open the connection
No
Connection open / stop / close
Yes
Close the connection
No
Automatic closing (time)
Yes
Automatic closing (after passing photocell)
No
Safety list NC
No
Connection of the safety list optically
No
Connection safety list 8k2
No
Power supply for accessories
Yes
Self-blocking
Yes
Limit switches
No
Programming tools available
No
Soft start and / or stop
Yes
Speed (max.)
160 mm/sec
Lighting
Yes
Power
700 N (70 daN)
Integrated receiver
Yes
Number of channels
1
Integrated antenna
Yes
Homelink
No
Memory for number of transmitters
100
Modulation
FM
Antenna connection
No
Rolling code?
Yes
Homelink compatibel?
No
Radio Frequency
433MHz
Radio code
Hormann 433 BiSecur
EAN-code (13)
4005954218620
Brand
Ecostar
