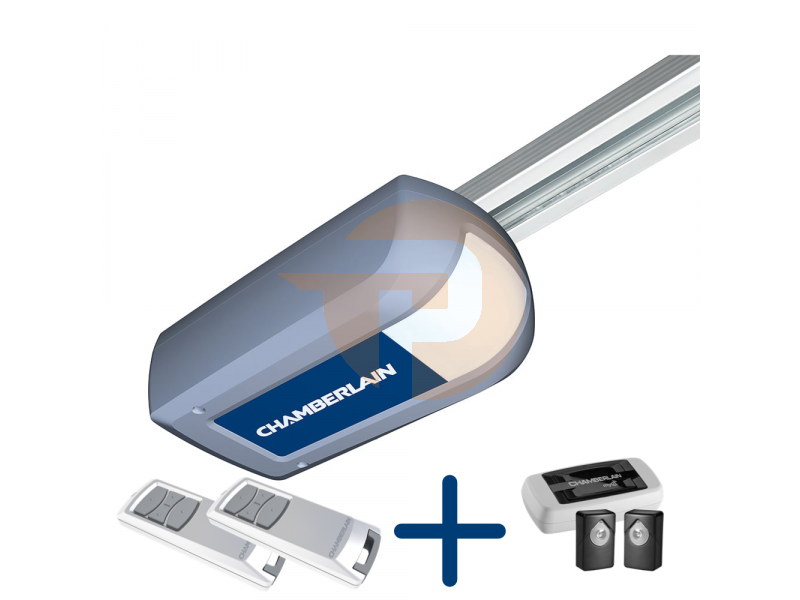

Garagedoor motor Chamberlain Comfort ML810EV-SMART

269,95
Add to Compare
Availability
In stock
  • Complete set: Motor, rail & 2 handheld transmitters.

  • Control worldwide with the App MyQ!

  • Max. 6 year warranty on the motor.
  • Contact us for large amounts (100+)

  • Unlimited online support

Environmentally Friendly Garage Door Operator Chamberlain Premium ML810EV-SMART

The garage door operator Chamberlain Premium ML8100EV has a low standby consumption of 0.8W, which is good for your wallet and the environment. Easy to install and INCLUDING the MyQ smartphone solution.

This set includes everything you need for smartphone operation!

Standard delivery:

Assembly instructions
Drive Comfort ML800EV
Mounting kit for installation
2x TX4REV-F 4-channel handheld transmitter
Guide rails 3 parts with toothed belt
MyQ Smartphone Kit (SmartPhone solution)

Additional options

Connection to ceiling control: Push button (push button inside)
Connection to ceiling control: Keypad
Emergency release: 1REV

General

Max door width 5000 mm
Max door width 3000 mm, 3500 mm, 4000 mm, 4500 mm, 5000 mm
Max door height 2250 mm
Max door height 2150 mm, 2250 mm
Class (number of parking spaces) No index
Installation length (minimum) 3200 mm
Inbouwlengte (minimaal) 3080 mm, 3140 mm, 3160 mm, 3164 mm, 3183 mm, 3200 mm
Operating temperature -30 ... +65 °C
Operating voltage 230 Vac
Absorbed power at rest 0.8 W
Recorded (max.) 80 W
Connection indicator lamp Yes
Connection traffic light No
Connection photocell Yes
Part opening connection Yes
Open the connection Yes
Connection open / stop / close Yes
Close the connection Yes
Automatic closing (time) Yes
Automatic closing (after passing photocell) Yes
Safety list NC No
Connection of the safety list optically No
Connection safety list 8k2 No
Power supply for accessories No
Self-blocking No
Limit switches No
Programming tools available No
Soft start and / or stop Yes
Speed ​​(max.) 160 mm/sec
Lighting Yes
Power 800 N (80 daN)
Integrated receiver Yes
Integrated antenna No
Homelink No
Memory for number of transmitters 180
Modulation FM
Antenna connection No
Rolling code? Yes
Homelink compatibel? No
Compatible drive model Chamberlain ML810EV, Chamberlain ML810EV-SMART
Radio Frequency 433MHz, 868MHz
Radio code Chamberlain/Liftmaster EVO-code (Security+2.0)
Brand Chamberlain

Compatible with

Instruction video garage door operator Chamberlain ML-series installation (English)

Instruction video garage door operator Chamberlain ML-series installation (Dutch)

Pdfs
