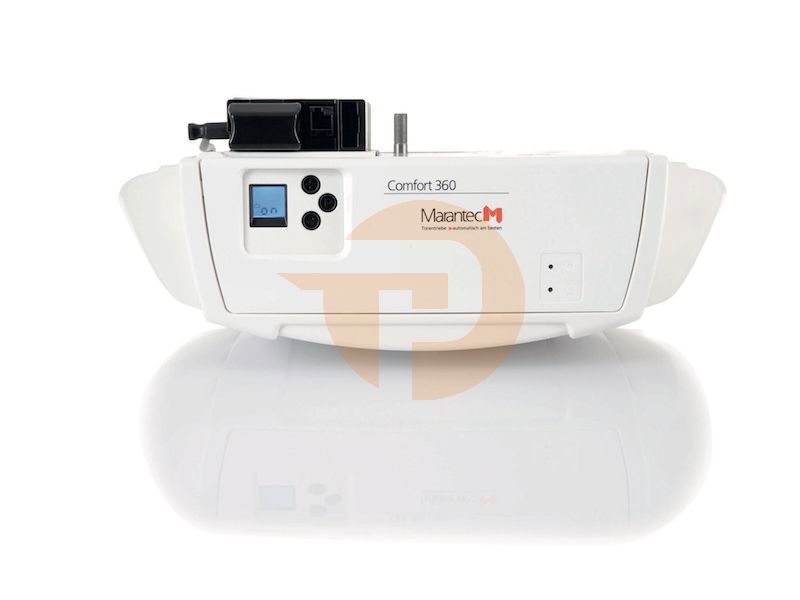

With this energy saving BlueLine technology, Marantec is as the top of its game.
This complete garage door opener set by Marantec offers comfort for garage doors up to 5.5m wide. The garage door opener offers three security protocols against burglary: self-braking transition/electronic security/optional mechanic lockdown.
Your package includes
Opener with integrated controller
Optional rail with gears(SZ 11-S)
Digital 921 modular receiver
Digital 572 2-channel micro remote
Universal montage set for tilting and sectional doors
Net cable with euro-cord 1500mm
Montage manual
Maximum door height per rail
SZ11-SL
2250 mm
SZ12-SL
2500 mm
Extra options
Connection to controller: External pushbutton
Connection to controller: Foto cell
Connection to controller:Wicket door contact
Connection to controller:: 24V DC max 50 mA
Connection to controller: Modular antenne
Connection to controller: Emergency power battery
Connection to controller via MS-Bus extension module: Extra relay
Connection to controller via MS-Bus extension module: pressure lists (Opto300/Fraba/8K2)
Connection to controller via MS-Bus extension module: led signal light 24V DC
Connection to controller via MS-Bus extension module: programmable relay exit
Connection to controller via MS-Bus extension module: programmable entry
Connection to controller via MS-Bus extension module: controller door lock
Automatic closing by foto cell (ONLY after intervention by a certified Marantec installer)
In addition to the Standard 200 Series features, the 300 Series also includes the following extras
High speed function speed
Power input stand-by not 4W but aprox. 0,6W
Standard 200 Series feature
Economy mode
Electronic travel cut-out
Soft start/soft stop/soft run
Electronic push-open security
Anti-blocking device
Excess travel stop
Release using pull rope (inside)
Motor head rotatable by +/- 90°
Marantec EOS programming with LC-display
Direction of rotation programmable
Back jump (stress relief of the closing edge)
Automatic closing function only usable in combination with a photocell (ONLY after intervention by a certified Marantec installer)
Door open duration and warning time programmable
Lighting duration programmable and switchable via radio
Automatic cut-out OPEN and CLOSE separately programmable
Intermediate position OPEN and CLOSE separately programmable
Door travel speed OPEN and CLOSE separately programmable
Soft run position OPEN and CLOSE separately programmable
Soft run speed OPEN and CLOSE separately programmable
Door frame function (suppression of photocells in the door-frame)
Programmable impulse input and output
Servicing counter (interval programmable) and door cycle counter
Fault messages with memory
Multistage reset function (control unit, safety, remote etc.)
Connection (conventional) for push button, photocell and hold circuit
Connection (MS-Bus) for expansion boards
Connection (MS-Bus) for hand programming device and expansion modules
