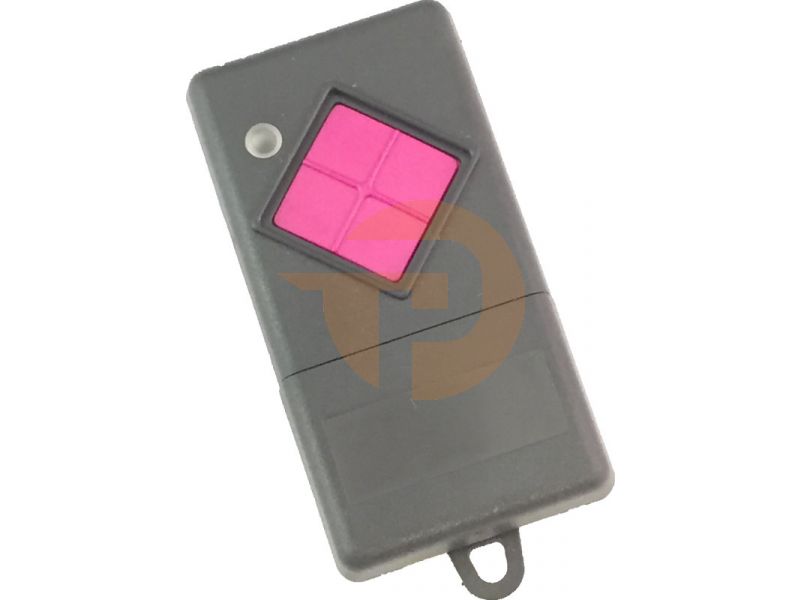

NOTE: The MAHS433-01 transmitter with purple push button and yellow LED works at 433.92MHz. If you have a variant with a green LED light and it contains a micro switch (DIP-10), then you must have the FHS10-01. There are also hand transmitters with a different color push button (red / blue / orange) and different color LED lights, but all are NOT interchangeable.
Programming:
Set the microswitches on the inside (DIP-10) to match an already functioning handheld transmitter . No working handheld transmitter? Then align them with the microswitches on the receiver / drive.
| Number of pushbuttons | 1 |
|---|---|
| Radio Frequency | 433MHz |
| Color of button | Pink |
| Color of LED | Yellow or Amber |
| Radio code | Dickert Linear Code 18Bit (DIP-10) |
| Rolling code? | No |
| Self learning? | Yes |
| Homelink compatibel? | No |
| Battery type | 23A / LR23 / MN21 12V Alkaline |
| Brand | Dickert |
