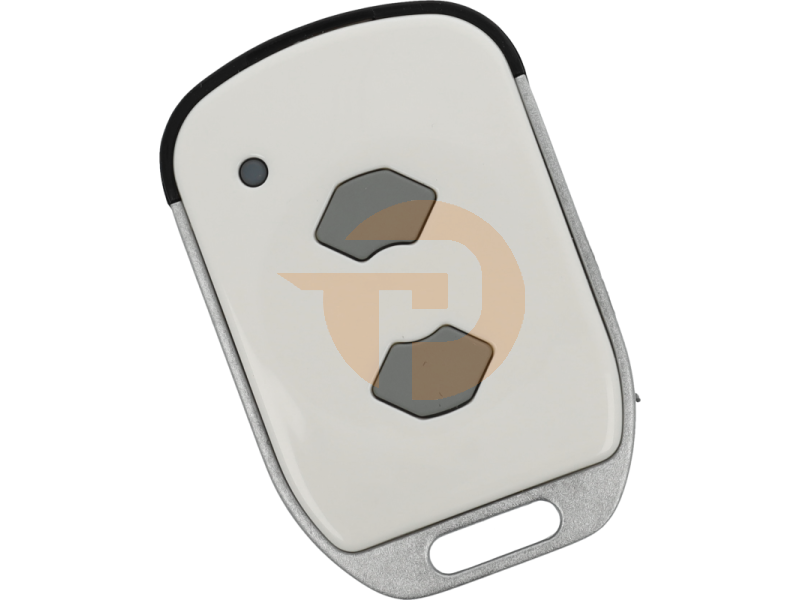

2-channel transmitter on 868MHz
NOTE: This is the 868.3MHz Bi-linked version. There exists also a 433.92MHz Bi-Linked version, but this remote is not compatible. Always order the correct frequency and coding. Bi-Linked and Multi-bit codings are not compatible.
Programming your remote:
In direct proximity of the receiver, push in the micro button of your old remote, after which you immediately press down the button that you use to open the garage door. The receiver is now in its programming mode. Now, within 10 seconds, repeat the exact same thing with your new remote.
| Number of pushbuttons | 2 |
|---|---|
| Radio Frequency | 868MHz |
| Color of button | Gray |
| Color of LED | Red |
| Radio code | Marantec Bi-linked (128Bit AES) |
| Number of channels | 2 |
| Rolling code? | Yes |
| Self learning? | Yes |
| Homelink compatibel? | No |
| Battery type | CR2032 3V Lithium |
| Compatible drive model | Marantec Comfort 260, Marantec Comfort 260 ACCU, Marantec Comfort 270, Marantec Comfort 280, Marantec Comfort 360, Marantec Comfort 370, Marantec Comfort 380 |
| Brand | Marantec |
