Industrial door opener set MFZ STA 1-10-24 KE CS320
Industrial door opener set MFZ 166959
WARNING:
Also known as Condoor and Highline.
This set with industrial door opener offers you the following advantages:

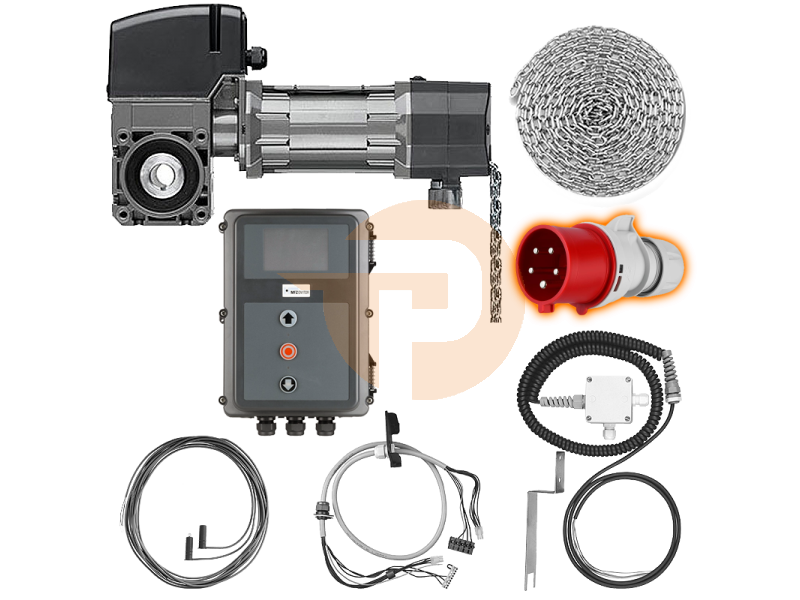

Your package includes
Motor STA 1-10-24 KE
Operating system CS320 400V/3Ph
Integrated remote in the lid of the control panel.
Integrated LCD-display
7 meter cable (between motor and operating system)
CEE-plug
Optic sensor (walk-below security)
Spiral cable + connector (attached to the door surface)
Technical specs motor
Static hold moment
600 Nm
Working voltage
400V / 3Ph
Nominal power motor
3,5 KW / 2,0 A
Sound level (Cont.)
<70 dB(A)
Maximum amount rotations shaft
20
Emergency release
Chain (10 meter)
Technical specs operating system
Type operating system
CS310 400V / 3Ph
Power supply operating system
400V / 3Ph Vac
Retained power (maximum)
2200W at 400V / 3Ph
Motor relay or frequency switch?
Motor relay
Control panel on operating system?
Yes
Connection signal lights?
Yes, via programmable exits
Connection foto cell?
Yes
Connection wicket door-sensor?
Yes
Connection pulse (Open/Stop/Down)?
Yes
Mechanical end switch or electronic encoder?
Electronic Encoder (AWG)
Integrated radio receiver?
Optional: CS-funk (Multi-Bit) or Digital 991 (Bi-Linked)
Amount programmable radio channels
Multi-bit: unlimited or Bi-Linked: 100
Frequency radio-ontvanger
Can be ordered as 433 or 868 MHz
Coding radio-receiver
Multi-bit or Bi-Linked
Rolling code?
Multi-Bit: No or Bi-Linked: Yes
Bi-directional communication?
No
Product details
User intensity
60% = 6 minutes per 10 minutes, or 20 open- & close movements per hour.
Environmental temperature range
-20ºC .. 50ºC
Extra options
Easily programmable via LCD-display
Error messages easily viewable on screen
Power setting
0,37 kW
Configuration
n.a.
Operating voltage
3x400 Vac + N + PE(3 phase + Neutral + Protective Earth)
Mains frequency
50 Hz
Control voltage
24 V
Max. load (per drive)
0,37 kW
IP protection class
IP 65
Housing
Standard
Fuse in mains
10A
Plug on power cord
CEE male 5 pin 6H 16A IP44 plug 380-415VAC
Control panel on control box?
Yes
Display in control box?
Yes
Operating temperature
-20 ... +50 °C
Drive Torque
100 Nm
Drive motor speed
24 min¯¹
Static holding torque
600 Nm
Motor output
0,37 kW
Motor voltage/ motor output
400 Vac (3 phase)
Max. cycles/hour
20
Max output revolutions
20
Shaft mounting
Sleeve shaft 25,4 mm with key
Emergency operation
Chain
Continuous sound pressure level
< 70 dB(A)
Frequency Converter or Motor Relay?
Motor relay
Cabling between drive and control unit included?
Yes
Wicked door sensor included?
No
Unit weight
23,0 Kg
Brand
MFZ
