Industrial door opener set

STA 1-10-30 KE FU-I CS320

Unlimited online support

Industrial door opener set 188037N

WARNING: This product is ONLY SUITED for the PROFESSIONAL INSTALLER!

Also known as Condoor and Highline.

This set with industrial door opener offers you the following advantages:

All-in-1 box
Easy montage and installation
Reliable technology
Suited for feather-balanced industrial doors with a 25,4mm shaft
Maximum door area: 45 M² / 585Kg

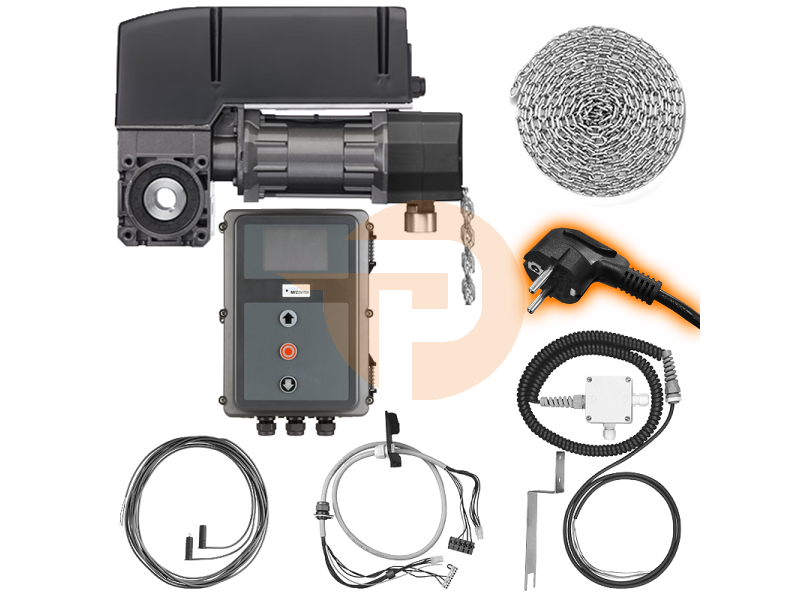

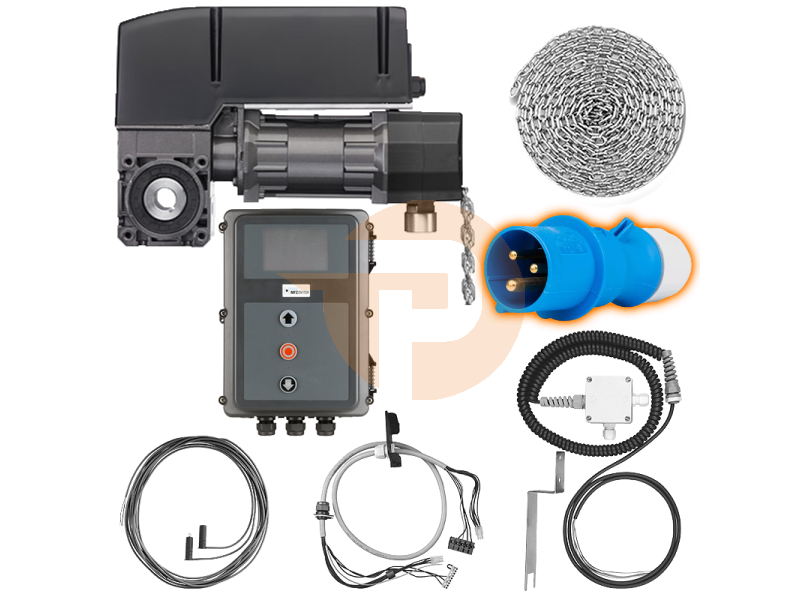

Your package includes:

Motor STA 1-10-30 KE FU-I

Operating system CS320 FU-I 230V/1Ph

Integrated remote in the lid of the control panel.

Integrated LCD-display

7 meter cable (between motor and operating system)

CEE-plug

Optic sensor (walk-below security)

Spiral cable + connector (attached to the door surface)

Technical specs motor

Drive torque

100 Nm

Static hold moment

600 Nm

Motor power

0,55 kW

RPM

30 min -1

Working voltage

230 / 1Ph

Net frequency

50 Hz

Operating voltage

24 V

Nominal power motor

0,55 kW / 3,5 A

Diameter shaft

25,4 mm

Safety grade

IP 65

Sound level (Cont.)

<70 dB(A)

Weight

15 Kg.

Maximum amount rotations shaft

Emergency release

Chain (10 meter)

Technical specs operating system

Type operating system

CS320 FU-I

Power supply operating system

230V 1Ph Vac

Retained power (maximum)

0,5 kW

Motor relay or frequency switch?

Frequency switch in the motor (FU-I)

Control panel on operating system?

Yes

Safety grade

IP 65

Connection signal lights?

Yes

Connection foto cell?

Yes

Connection wicket door-sensor?

Yes

Connection pulse (Open/Stop/Down)?

Yes

Mechanical end switch or electronic encoder?

Electronic encoder (AWG)

Integrated radio receiver?

Optional: CS-funk (Multi-Bit) or Digital 991 (Bi-Linked)

Amount programmable radio channels

Multi-bit: unlimited or Bi-Linked: 100

Frequency radio-receiver

Can be ordered as 433 or 868 MHz

Coding radio-receiver

Multi-bit or Bi-Linked

Rolling code?

Multi-Bit: No or Bi-Linked: Yes

Bi-directional communication?

Product details

Warranty

12 months

User intensity

20 open- & close movements per hour.

Environmental temperature range

-20ºC .. 50ºC

Extra options

Easily programmable via LCD-display

Error messages easily viewable on screen

Technical specifications

Power setting	0,5 kW
Configuration	FU-I (in motor)
Operating voltage	230 Vac + N + PE ( 1 phase)
Mains frequency	50 Hz
Control voltage	24 V
Max. load (per drive)	0,55 Kw
IP protection class	IP 65
Housing	Standard
Fuse in mains	10A
Plug on power cord	CEE male 3 pin 6H 16A IP44 plug 220-240VAC
Control panel on control box?	Yes
Display in control box?	Yes
Operating temperature	-20 ... +50 °C
Compatible model control	Marantec CS320 FU (0,75)
Compatible drive model	Marantec STA 1-x-x x FU-I
Drive Torque	100 Nm
Drive motor speed	30 min¯¹
Static holding torque	600 Nm
Motor output	0,55 kW
Motor voltage/ motor output	230 Vac (1 phase)
Max. cycles/hour	20
Max output revolutions	20
Shaft mounting	Sleeve shaft 25,4 mm with key
Emergency operation	Chain
Continuous sound pressure level	< 70 dB(A)
Frequency Converter or Motor Relay?	Frequency Converter
Cabling between drive and control unit included?	Yes
Wicked door sensor included?	No
Unit weight	23,0 Kg
Brand	MFZ
