General
| Max door width | 5000 mm |
|---|---|
| Max door width | 3000 mm, 3500 mm, 4000 mm, 4500 mm, 5000 mm |
| Class (number of parking spaces) | max 10 parking spots |
| Operating temperature | -20 ... +50 °C |
| Max. humidity | No damp or wet areas. |
| Protection degree | IP20 |
| Operating voltage | 230 Vac |
| Absorbed power at rest | 0.6 W |
| Recorded (max.) | 250 W |
| Connection indicator lamp | No |
| Connection traffic light | No |
| Connection photocell | Yes |
| Part opening connection | No |
| Open the connection | Yes |
| Connection open / stop / close | No |
| Close the connection | No |
| Automatic closing (time) | No |
| Automatic closing (after passing photocell) | Yes |
| Safety list NC | No |
| Connection of the safety list optically | No |
| Connection safety list 8k2 | Yes |
| Power supply for accessories | Yes |
| Self-blocking | Yes |
| Limit switches | No |
| Programming tools available | Yes |
| Soft start and / or stop | Yes |
| Speed (max.) | 220 mm/sec |
| Lighting | Yes |
| Power | 650 N (65 daN) |
| Intensity | 40 % |
| Integrated receiver | Yes |
| Number of channels | 1 |
| Integrated antenna | Yes |
| Homelink | No |
| Memory for number of transmitters | 200 |
| Modulation | FM |
| Antenna connection | No |
| Rolling code? | Yes |
| Homelink compatibel? | No |

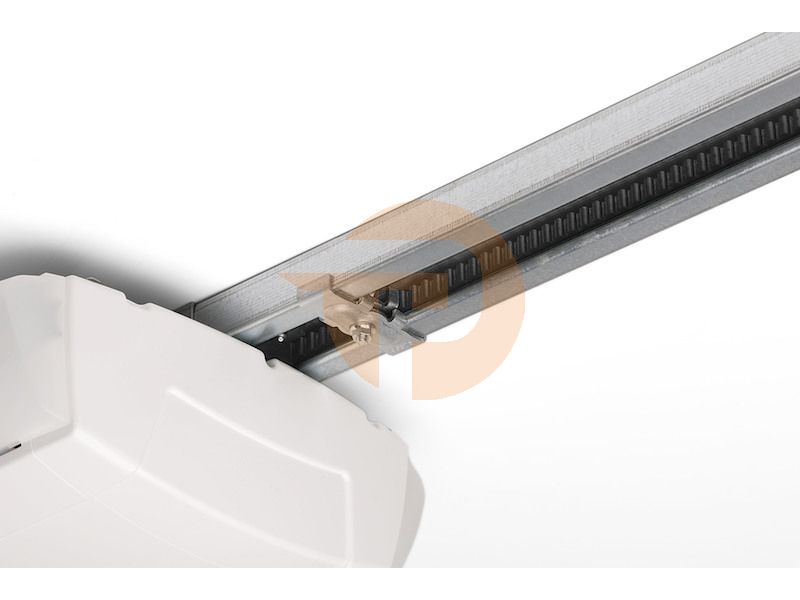

| Compatible drive model | Marantec Comfort 360 |
| Radio Frequency | 868MHz |
| Radio code | Marantec Bi-linked (128Bit AES) |
| Brand | Marantec |
