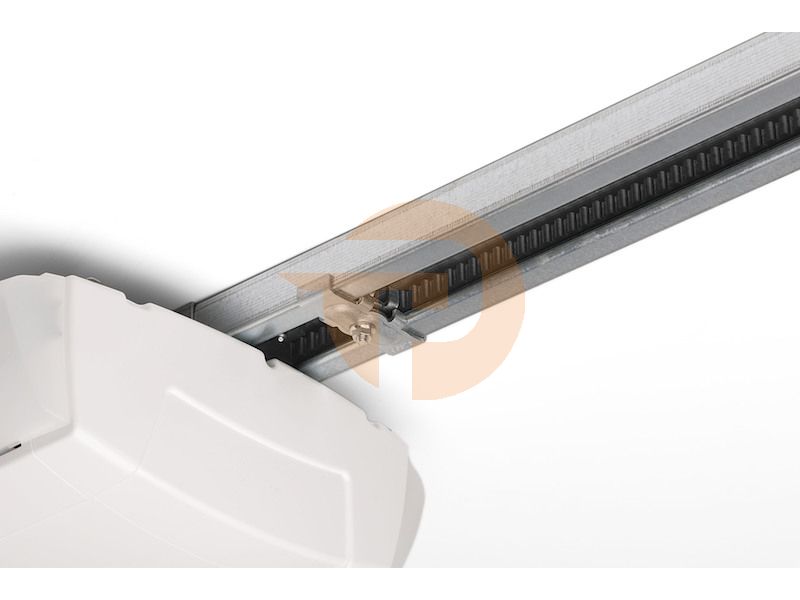

Marantec Comfort 380 drive
If you want to replace your Marantec Comfort 255, the Marantec Comfort 380 (highline 18) is a logical successor. After all, it can happen that your Comfort 255 electric garage door motor breaks down after years of good service.
In addition to a new functioning electric garage door motor, you switch to a system that is lower in energy consumption and your electric garage door motor works on the bi-linked radio technology, which also makes the garage safer.
For hanging the Marantec Comfort 380, you can consult our extensive manual or contact our helpdesk for extra support!
Important to know: This motor comes without rails.
Extra handy:
-
Inexpensive and easy to hang yourself
-
Security through encrypted wireless system
-
Many accessories available
-
Optional battery for power failure
-
Extra low energy consumption
-
2 garage door remote controls
Included as standard:
Drive with integrated control
Digital 921 modular receiver
Digital 564 4-channel mini handheld transmitter
Digital 572 2-channel micro hand-held transmitter
Power cable with euro plug 1500mm
Assembly guide
Additional options:
Connection to control: External push button
Connection to control: Photocell
Connection to control: Wicket door contact
Connection to control: 24V DC max 50 mA
Connection to controller: Modular antenna
Connection to control: Emergency power battery
Connection to control via MS-Bus extension modules: Additional relays (including end positions)
Connection to control via MS-Bus extension modules: contact edges (Opto300/Fraba/8K2)
Connection to control via MS-Bus extension modules: LED signal lamp 24V DC
Connection to control via MS-Bus extension modules: programmable relay output
Connection to control via MS-Bus extension modules: programmable input
Connection to control via MS-Bus expansion modules: control door lock
Automatically close in combination with photocell (ONLY after intervention by a certified Marantec installer)
This is a replacement for the older drives:
Marantec StarMatic 50
Marantec StarMatic 70
Marantec StarMatic 100
Marantec Comfort 51
Marantec Comfort 61
Marantec Comfort 220
Marantec Comfort 220.2
Marantec Comfort 250
Marantec Comfort 250.2
Marantec Comfort 252
Marantec Comfort 252.2
Marantec Comfort 252.2 speed
Marantec Comfort 257
Condoor Highline MA 6
Condoor Highline MA 8
Condoor Highline MA 10
Condoor Highline MA 10.2
Condoor Highline MA 15
Condoor Highline MA 15.2
Condoor Highline MA 18
