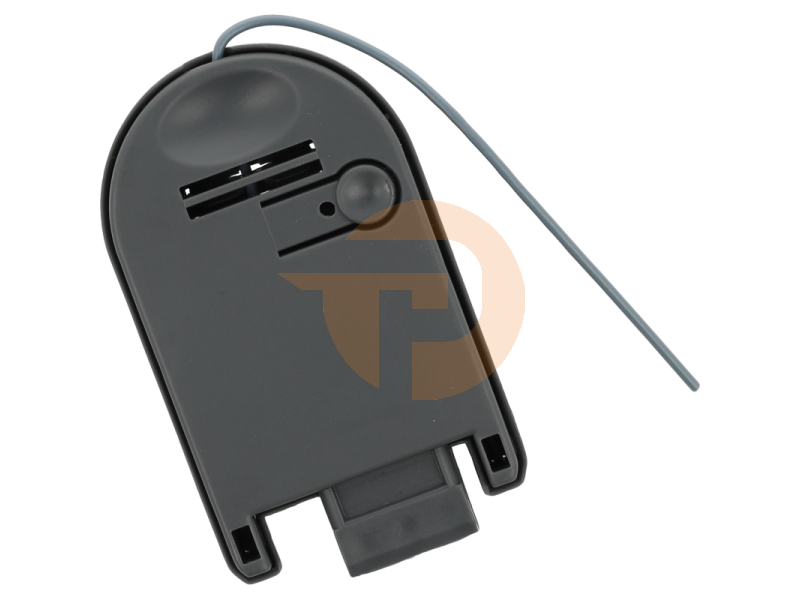

Receiver Marantec digital 164 868Mhz

This receiver is compatible with the following remote controls

Marantec Digital 302 only the 868MHz variant!

Marantec Digital 304 only the 868MHz variant!

Marantec Digital 306 only the 868MHz variant!

Marantec Digital 313 only the 868MHz variant!

Marantec Digital 321 only the 868MHz variant!

Marantec Digital 323 only the 868MHz variant!

Marantec Digital 382 only the 868MHz variant!

Marantec Digital 384 only the 868MHz variant!

Marantec Comfort 211

Marantec Comfort 220.2

Marantec Comfort 250.2

Marantec Comfort 252.2

Product Nr.

Digital 164

Brand

Marantec

Type

Marantec Digital 164

Frequency

868MHz

Channels

Code

Marantec fixed code (Multi-Bit)

Installers code/PIN-function

Max number of remote controls

umlimited

Supply

12 - 14 V ac/dc

Dimensions

37 x 53 x 13 mm

Environmental temperature

-20 tot +60 °C

IP00

Relais

None

1st remote directly to receiver (check the manual of the drive)

Next remote control is self learning (from remote to remote)

Radio Frequency	868MHz
IP protection class	IP 20
Radio code	Marantec Multi-Bit (40Bit)
Memory for number of transmitters	Unlimited
Housing material	ABS (Plastic)
Number of channels	1
Operating voltage	12/24 V ac/dc
Homelink compatibel?	No
Number of (relay/transistor) outputs	1
Brand	Marantec
