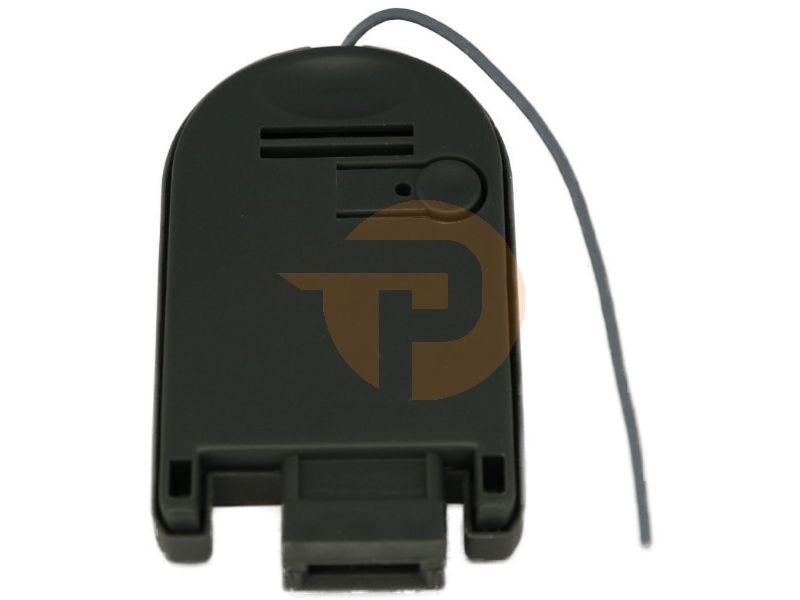

Receiver Marantec CS 868MHz (multibit)

74,95
Add to Compare
Availability
In stock
  • Marantec

  • Receiver Digital CS

  • 868Mhz
  • Contact us for large amounts (100+)

  • Unlimited online support

This product is also known as

Marantec 90664
Marantec 2195432 8318 R

This modular antenna is compatible with the remote controls

Marantec Digital 302 (868Mhz)
Marantec Digital 304 (868Mhz)
Marantec Digital 306 (868Mhz)
Marantec Digital 313 (868Mhz)
Marantec Digital 321 (868Mhz)
Marantec Digital 323 (868Mhz)
Marantec Digital 382 (868Mhz)
Marantec Digital 384 (868Mhz)

This receiver is compatible with the controllers

Marantec/MFZ CS 300
Marantec/MFZ CS 310
Marantec/MFZ CS 320
Marantec/MFZ CS 400

Technical specifications

Product Nr.
90664
Brand
Marantec
Type
Marantec Digital CS
Frequency
868MHz
Channels
1
Code
Marantec fixed code (Multi-Bit)
Installers code/PIN-function
No
Max number of remotes
unlimited
Supply
12 - 14 V ac/dc
Dimensions
37 x 53 x 13 mm
Environmental temperature
-20 to +60 °C
IP
IP00
Relais
None

Program remote controls

1st remote directly to receiver (check the manual of the drive)
Next remote control is self learning (from remote to remote)

General

Radio Frequency 868MHz
IP protection class IP 20
Radio code Marantec Multi-Bit (40Bit)
Memory for number of transmitters Unlimited
Housing material ABS (Plastic)
Number of channels 1
Operating voltage 12/24 V ac/dc
Homelink compatibel? No
Number of (relay/transistor) outputs 1
Brand Marantec

Compatible with
