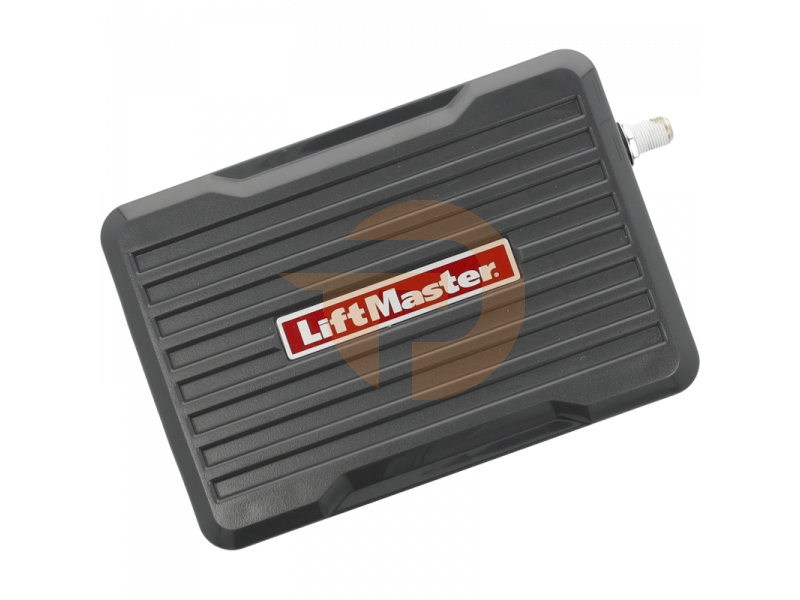

Receiver Liftmaster / Chamberlain 860EV with 3 channels on 433MHz & 868MHz
Universal 3-channel receiver from Liftmaster / Chamberlain for remote control of access applications.
This receiver is suitable for controlling 3 different functions on your door/gate: Open - STOP - Close or, for example, Completely open - Cyclist/pedestrian position - lights on. This can also be three different doors or gates that can be controlled with one contact.
Important to know: This receiver has an antenna connection with F-type connector (satelite) .
Product features
The 860EV receiver is part of the Liftmaster/Chamberlain EV system. The product is intended for use in automation installations for gates, garage doors, road barriers with barriers, sun blinds, skylights and for the control of lights and electrical circuits in general.
Equipped with 3 relays, 2 with normally open (NO) and 1 with normally open (NO) AND normally closed (NC) electrical contact, suitable to be used for controlling electrical power circuits.< /div>
Equipped with a memory with a storage capacity of 50 channels Channel 1, channel 2 & 3 each 20 pieces. Each channel can also memorize a maximum of 2 wireless code locks/code panels.
Suitable for the transmitters, among others
TX2EVS
TX2EV
TX4EVS
TX4EV
TX4UNIS
TX4UNI
747EV
Supplied as standard
Receiver in plastic housing
Manual in various languages
Programming handheld transmitters:
Can be programmed directly on the receiver. See the manual for your control/drive/receiver.
