General
| Radio Frequency | 868MHz |
|---|---|
| IP protection class | IP 40 |
| Radio code | RDA KeeLoq |
| Memory for number of transmitters | 15 |
| Number of channels | 1 |
| Operating voltage | 24 Vdc |
| Homelink compatibel? | No |
| Brand | RDA |

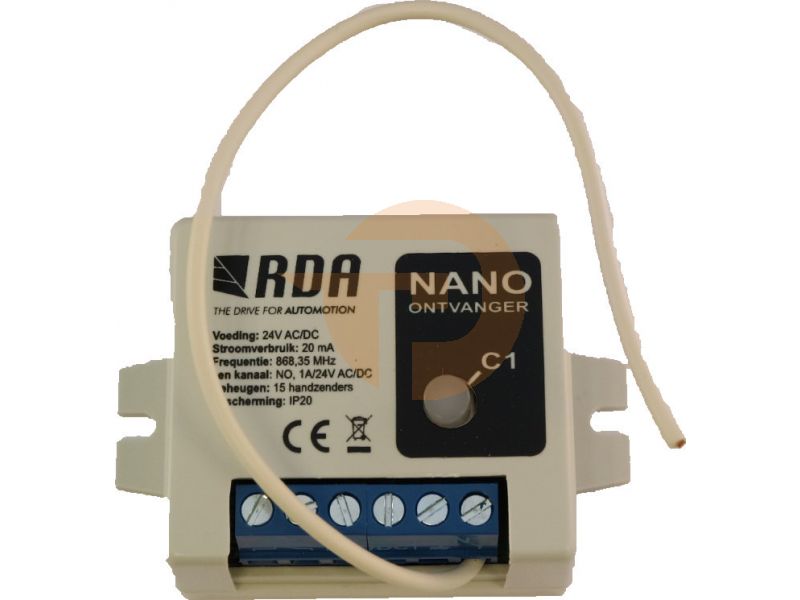

Receiver RDA Nano868 868MHz
Receiver RDA Nano868 868MHz
This article is replaced by RDA MINI 2K 868MHz
De RDA Nano868 is single channel receiver working on 868MHz. This receiver has the following advantages:
- Memory for max. 15 trnasmitters
- Encryptie through rolling code
Installing transmitters
Self-learning (from remote to remote) nearby the receiver: press 15 seconds on existing remote, then within 3 seconds, press 15 seconds on the new remote.
Programming direct on the receiver: Press button on receiver and remote simultaneously, the LED will flash as the transmitter is accepted.
Compatible with
- 521645.000248RDA - Industrial Transmitter RDA STARK 100K 868MHz
- 521645.000098RDA - Receiver RDA MINI868 2K 868MHz
- 521645.000224RDA - Receiver RDA PIKO868 1K 868MHz
- 521645.000227RDA - Receiver RDA PIKO868-UBS 1K 868MHz
- 521645.000022RDA - Remote Control RDA MIX 12K 868MHz
- 521645.000168RDA - Remote RDA ART 2K 868MHz
- 521645.000167RDA - Remote RDA ART 4K 868MHz
- RDA-NEO-2K-868 - Remote RDA NEO 868 2K
- RDA-NEO-4K-868 - Remote RDA NEO 868 4K
- 732745.000003RDA - Remote RDA RC868 4K
- 521645.000064RDA - Remote RDA Victory-868 RVS 2K 868MHz
- 521645.000010RDA - Remote RDA Victory-868 RVS 4K 868MHz
- 521645.000001RDA - Remote control RDA Victory-eco 2K 868MHz
- 521645.000004RDA - Remote control RDA Victory-eco 4K 868MHz
- 521645.000260RDA - Wall transmitter RDA DDK 3K 868MHz Black
- 521645.000257RDA - Wall transmitter RDA DDK 3K 868MHz White
