Receiver RDA PIKO868 1K 868MHz

(0)
Availability
In stock
  • RDA

  • PIKO868

  • RDA-Coding

  • 868Mhz
  • Contact us for large amounts (100+)

  • Unlimited online support

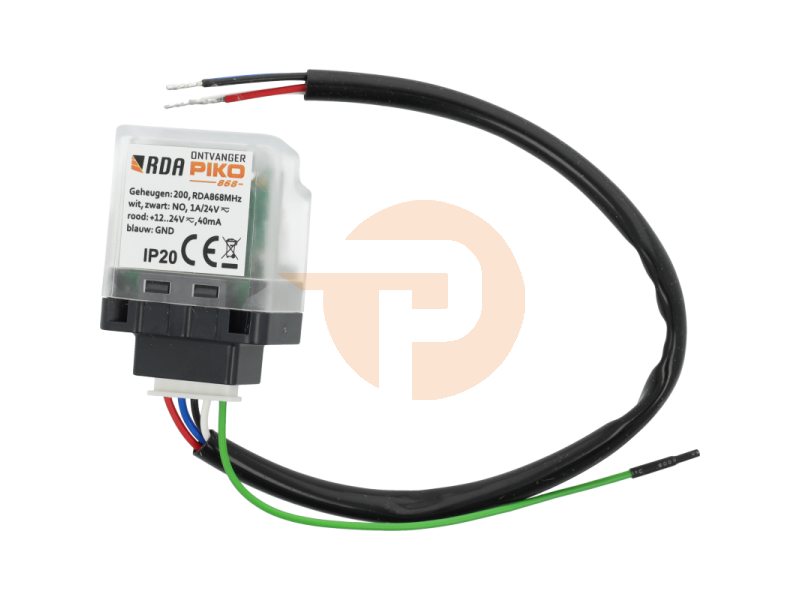

Receiver RDA PIKO868 with 1 channel at 868MHz

NOTE:

The manufacturer has changed the software for the latest batch. As a result, the old RDA NEO transmitters cannot be programmed on the receiver (at the moment)! You can use the RDA MINI instead.

RDA 1-channel receiver with plug and wire antenna.

The PIKO868 has a memory capacity of 200 hand-held transmitters, is equipped with a wire antenna and can be installed practically anywhere thanks to its small size.

Product features

The receiver is intended for use in installation cabinets, in buildings and in housings of other automatic devices.
Supplied with a cable with 3 wires (2x power supply, 12…24Vac/dc and 1x relay output, N.O.).
Equipped with a memory with a storage capacity of 200 channels.
The receiver comes with an antenna from the factory.

Included as standard

Recipient
With antenna
Manual in Dutch language

Technical data

Art.No.
521645.000224
Brand
RDA
Type
PIKO868
Frequency
868MHz
Channels
1
Code
RDA encoding
Installer code/PIN function
No
Max number of hand transmitters
200
Nutrition
24Vac
Size
41 x 30 x 19 mm
Ambient temperature
-20 ... +55 °C
IP
20
Relay
1x relay output, N.O (24V ac/dc 1A)

Programming hand-held transmitters

Program directly on the receiver. See the manual for your control/drive/receiver for this.

General

Radio Frequency 868MHz
IP protection class IP 20
Radio code RDA KeeLoq
Memory for number of transmitters 200
Housing material ABS (Plastic)
Number of channels 1
Operating voltage 24 V ac/dc
Homelink compatibel? No
Number of (relay/transistor) outputs 1
EAN-code (13) 5901688856116
Brand RDA
