Receiver Tele Radio PN-R15-14 12-24V ac/dc

628,84
Add to Compare
Availability
In stock
  • TeleRadio

  • PN-R15-14

  • 2,4GHz

  • 10 channels
  • Contact us for large amounts (100+)

  • Unlimited online support

Product properties

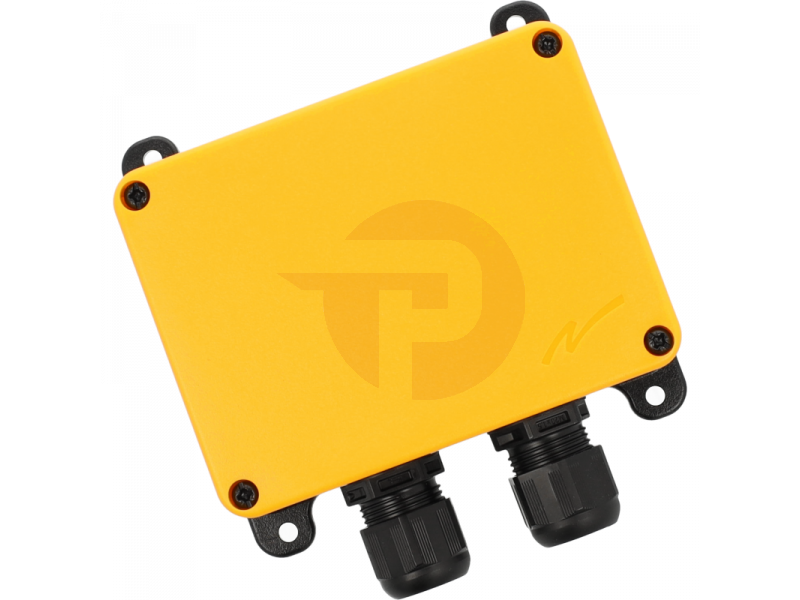

The PN-R15-14 receiver is part of Tele Radio's Panther system. The product is intended for use in automation installations for gates, winches, recovery vehicles, rescue vehicles, vacuum trucks, transport trailers and electrical circuits in general.
Equipped with 10 relay outputs & 2 EMERGENCY STOP relay outputs)
Can be equipped with custom software for advanced circuits.
Equipped with a memory with a storage capacity of 8 channels.

Included as standard

Receiver in plastic housing (IP66)
Manual in English

Technical data

Art.Nr.
PN-R15-14
Brand
Tele Radio
Type
PN-R15-14
Frequency
2.4GHz
Channels
10 (+ emergency STOP)
Code
Tele Radio Panther 2.4GHz
Max number of remotes in memory
8
Power Supply
2-24V ac/dc
Dimensions
120 x 117 x 51mm
Ambient temperature
-20 ... +55 °C
IP
66
Relay outputs
10x 3A continuous (10A peak power / 25ºC)
Emergency stop relay outputs
2x 3A continuous (10A peak power / 25ºC)
Relay functions
Momentary, Latching & (programmed) Interlocking

Programming (hand-)held transmitters

Programmable directly on the receiver. See the manual of your receiver for this.
First press 'Function' in the receiver and then 'Select' to then simultaneously operate buttons 1 & 2 on the transmitter.

General

Radio Frequency 2,4GHz
IP protection class IP 66
Radio code Teleradio Panther 2,4GHz
Memory for number of transmitters 8
Housing material ABS (Plastic)
Number of channels 10
Operating voltage 12/24 V ac/dc
Homelink compatibel? No
Number of (relay/transistor) outputs 10
Brand Tele Radio
