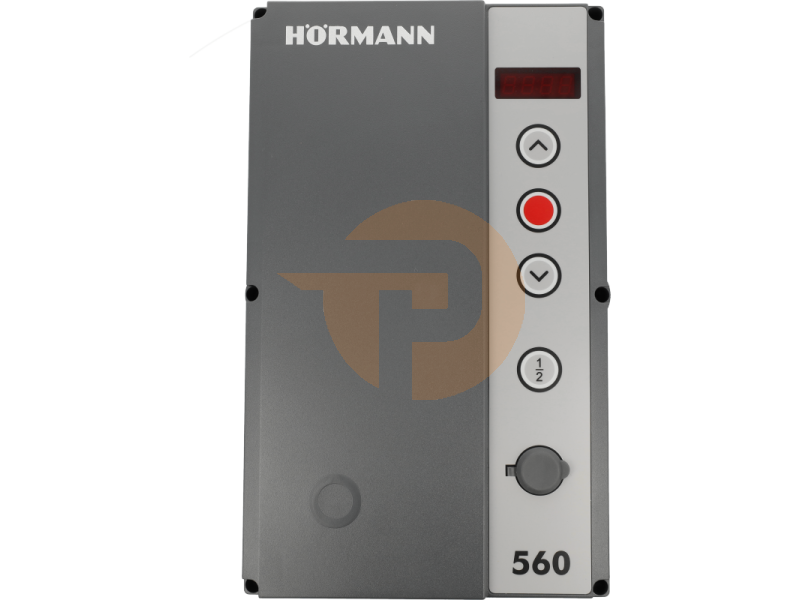

Control 560 Hörmann in housing
Industrial control Hörmann 4514000
PLEASE NOTE:
This industrial door control offers you the following benefits:
Standard included in this control
Control 560 (230V/1Ph or 400V/3Ph)
Integrated control in the cover of the control cabinet
Integrated 4-digit display
Manual
Technical data control
Connection voltage control
230V/1Ph or 400V/3Ph
Power consumption (maximum)
2750W at 230V / 1Ph
Motor relay or frequency controller?
Frequency controller
Control panel on the control?
Yes
Traffic light connection?
Yes, with optional expansion module
Photocell connection?
Yes
Connection of pedestrian door sensor?
Yes
Connection of pulse (Open/Stop/Down)?
Yes
Mechanical limit switches or electronic encoder?
Electronic Encoder (via CAN bus)
Integrated radio receiver?
Optional: BeSecur receiver (e.g. HE3 868-BS)
Number of programmable radio transmitters
Depending on the receiver (e.g. HE3 868-BS = 300)
Radio receiver frequency
Depending on the receiver (e.g. HE3 868-BS = 868)
Radio receiver coding
Depending on the receiver (e.g. HE3 868-BS = BiSecur)
Rolling code?
Depending on the receiver (e.g. HE3 868-BS = YES)
Bidirectional communication?
Depending on the receiver (e.g. HE3 868-BS = YES)
Product features
Manufacturer's warranty
12 months
Temperature range
-20ºC .. 60ºC
Additional options
Easy programming via 4-digit display
Error message easy to read from screen
Suitable for the drives
ITO 500 FU
WA 500
WA 500 FU
WA 500 M
WA 500 M-FU
ET 500
ST 500
STA 500 FU
Brand
Hörmann
Power setting
1,5 kW
Frequency Converter or Motor Relay?
Frequency Converter
Mains frequency
50/60 Hz
Control voltage
24 V
Max. load (per drive)
1,5 kW (7,8 A)
IP protection class
IP 65
Fuse in mains
16A
Control panel on control box?
Yes
Display in control box?
Yes
Operating temperature
-20 ... +60 °C
Unit weight
3,5 Kg
Compatible model control
Hörmann 560
Compatible drive model
Hörmann ET 500, Hörmann ITO 500 FU, Hörmann ST 500, Hörmann STA 500 FU, Hörmann WA 500, Hörmann WA500 FU, Hörmann WA 500 M, Hörmann WA500 M-FU
