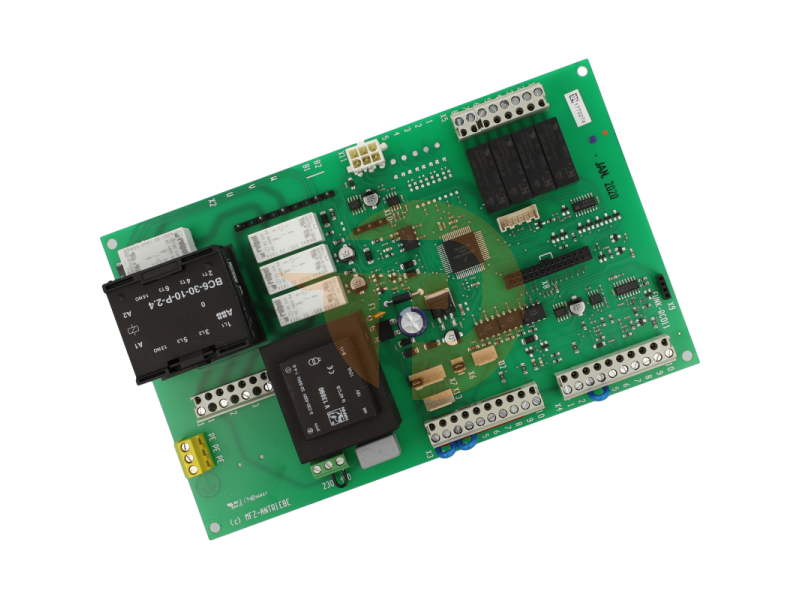

CS300 AWG 400V/3PH PCB (printed board)

243,95
Add to Compare
Availability
Replace by alternative
  • Contact us for large amounts (100+)

  • Unlimited online support

This article is replaced by CS320 400V / 3PH PCB

Printed circuit board MFZ CS300 AWG

Replacement printed board for MFZ CS300 controller with an electronic encoder.
Suited for power supply 230V / 1Ph or 400V / 3Ph

This article is also known:

Marantec CS300 400V / 3Ph
MFZOvitor 97953
PCB CS300
Grundplatine CS300-AWG (AbsolutWertGeber)

General

Brand MFZ
Frequency Converter or Motor Relay? Motor relay
Operating voltage 3x400 Vac + N + PE(3 phase + Neutral + Protective Earth)
Motor voltage/ motor output 400 Vac (3 phase)
Mains frequency 50 Hz
Control voltage 24 V
IP protection class n.a.
Housing n.a.
Dimensions (WxHxD) 225 x 140 x 55 mm
Fuse in mains 10A
Plug on power cord n.a.
Control panel on control box? No
Display in control box? No
Operating temperature -10 ... +46 °C
Compatible model control Marantec CS300
